U Bar Assembly

'Nomic Station

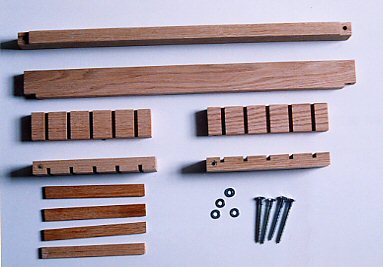

Locate and identify  U Bar Parts:

(2) Bars 13/16" X 2" X 23 1/16"

(4) Legs 13/16" X 2" X 8"

(4) screws: 1/4" X 3"

(4) splines: 1/4" X 3/4" X 3"

(4) washers: 1/4" flat (5/8" diameter)

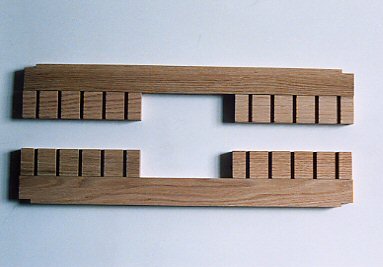

Arrange U Bar Parts as shown

3/16" holes in Bars and Legs should line up

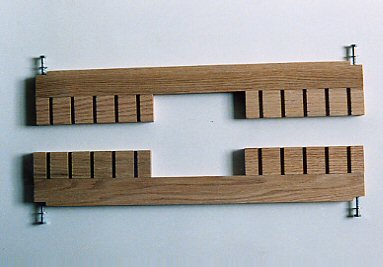

Connect Bars and Legs using the (4) 1/4" X 3" Screws with (1) Washer. Make sure Washers are under the Screw heads, not between the wood parts being joined.

Wax Screw prior to insertion.

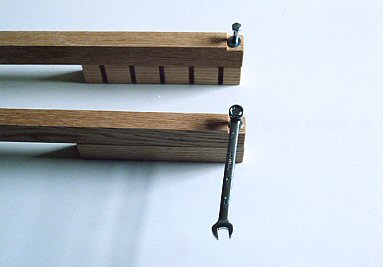

Tighten Screws

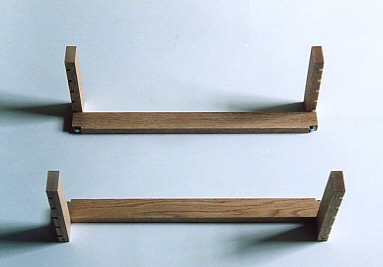

Unfold Bar and Leg assembly to to form a U shape.

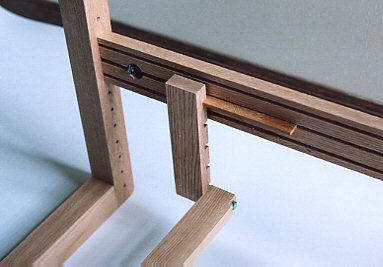

Use Splines to connect U Bars between the Rails of the desk.

Re-tighten screws, if necessary, once U Bars are in position.

Self stick Velcro squares can be used to attach your equipment the Equipment Bars.

Go to http://www.hardwoodfurniture.com/velcro.htm for more information.
