Table Assembly

'Nomic Station

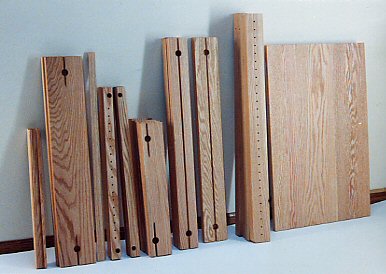

Un-pack Table parts.
Assemble End Frames

Use the assembly manual for your desk. End Frames for the Tables assemble the same way as those for the Desks.

Modern Style End Frames shown

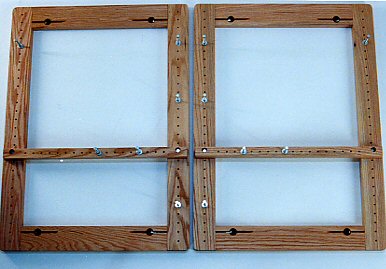

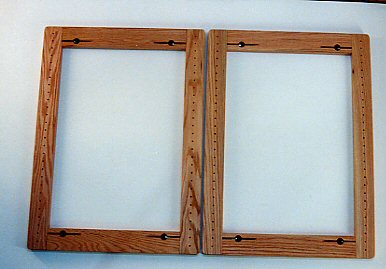

Arrange End Frames side by side. The rear legs are on the inside.

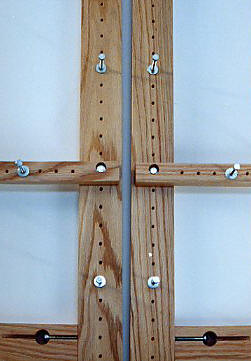

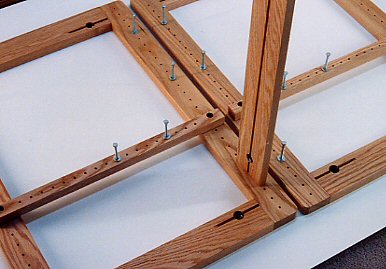

Install (4) 3" screws with (2) washers under their heads into 5th and 17th holes in Rear Legs. These screws will be used to attach the Frame Rails.

Use Gauge Pin to set height

Wax screws prior to insertion.



Lower Shelf Supports on newer Tables have a slot on the inside.




Lower Shelf Supports on newer Tables have a slot on the inside.

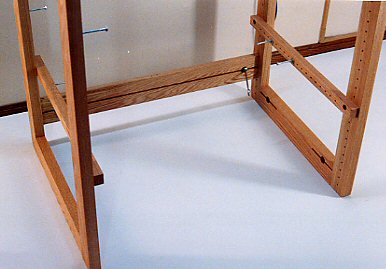

Install Frame Rail as shown.

Tighten screw.

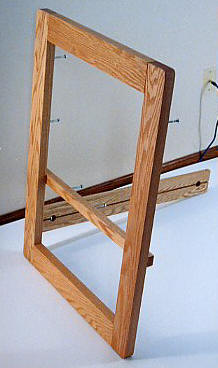

Stand End Frame up.

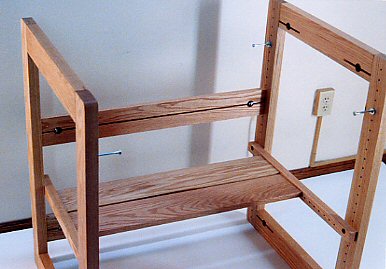

Attach other End Frame to Rail.
See Page 6 of Desk Assembly Manual for assembly of Table Shelf.  Install Table Shelf at Hole #11. Use (4)  1 1/2" screws with (1) washer under screw head.

Wax screws prior to installation.

Tighten screws.



New Table Shelf is 1 pc

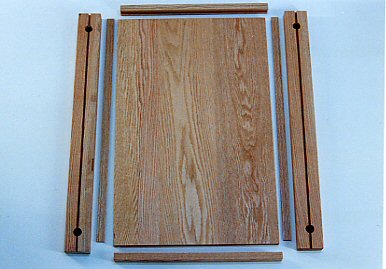

Arrange Table Top parts as shown.

Table Top is assembled upside down.

Table Top

Table Top Spline

Table Top Rail

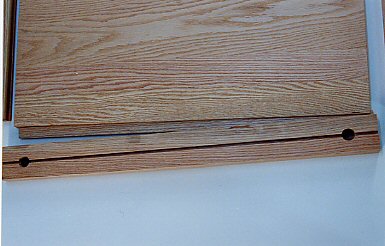

Table Top Board Side
Attach Table Rails to Table Top using Splines.

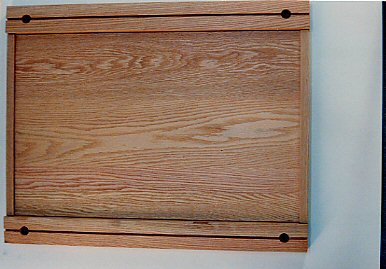

Slide on Table Top Board Sides.


Table Top Board Side

Table Top Board Sides have double sided tape in their slots. Peel off paper backing, and stick Table Top Board Side onto end of Table Top Board.

This will keep the Board Sides from falling off during the next assembly step.

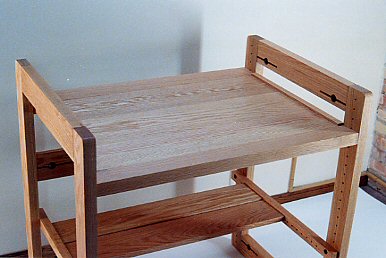

Drop Table Top Assembly onto screws in End Frames.

2 people make this job easier

Tighten screws.

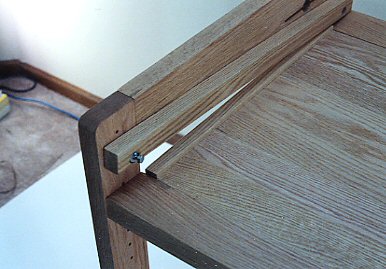

Install Cover Bars (Stationary Slides) to hide screw pockets in  End Frames.

Use (4) 1 1/2" screws with 1 washer under their heads.

Wax screws prior to insertion.
