Scanner Shelf Assembly

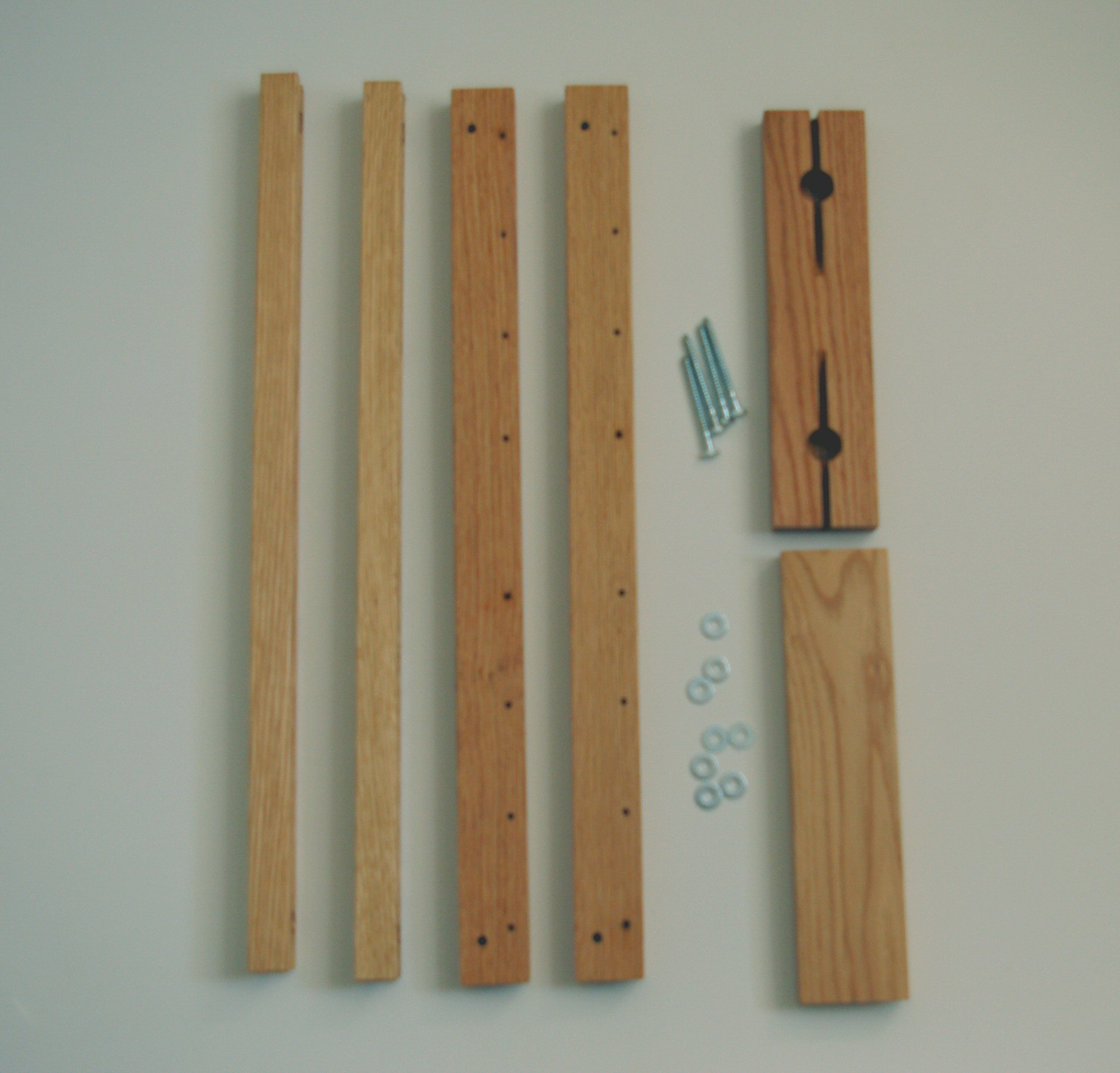

Locate & identify Scanner Shelf parts shown from left to right

(2) Desk Slides: 1 1/8" X 1 7/8" X 25 1/2"

(2) Shelf Slides: 1 1/16" X 1 7/8" X 25 1/2"

(4) Screws: 1/4" X 3"

(8) Washers

(2) Blocks: 1.1/16" X 3" X 12 3/8"




Arrange Shelf Slides as shown

Note location of (8) 3/16" holes

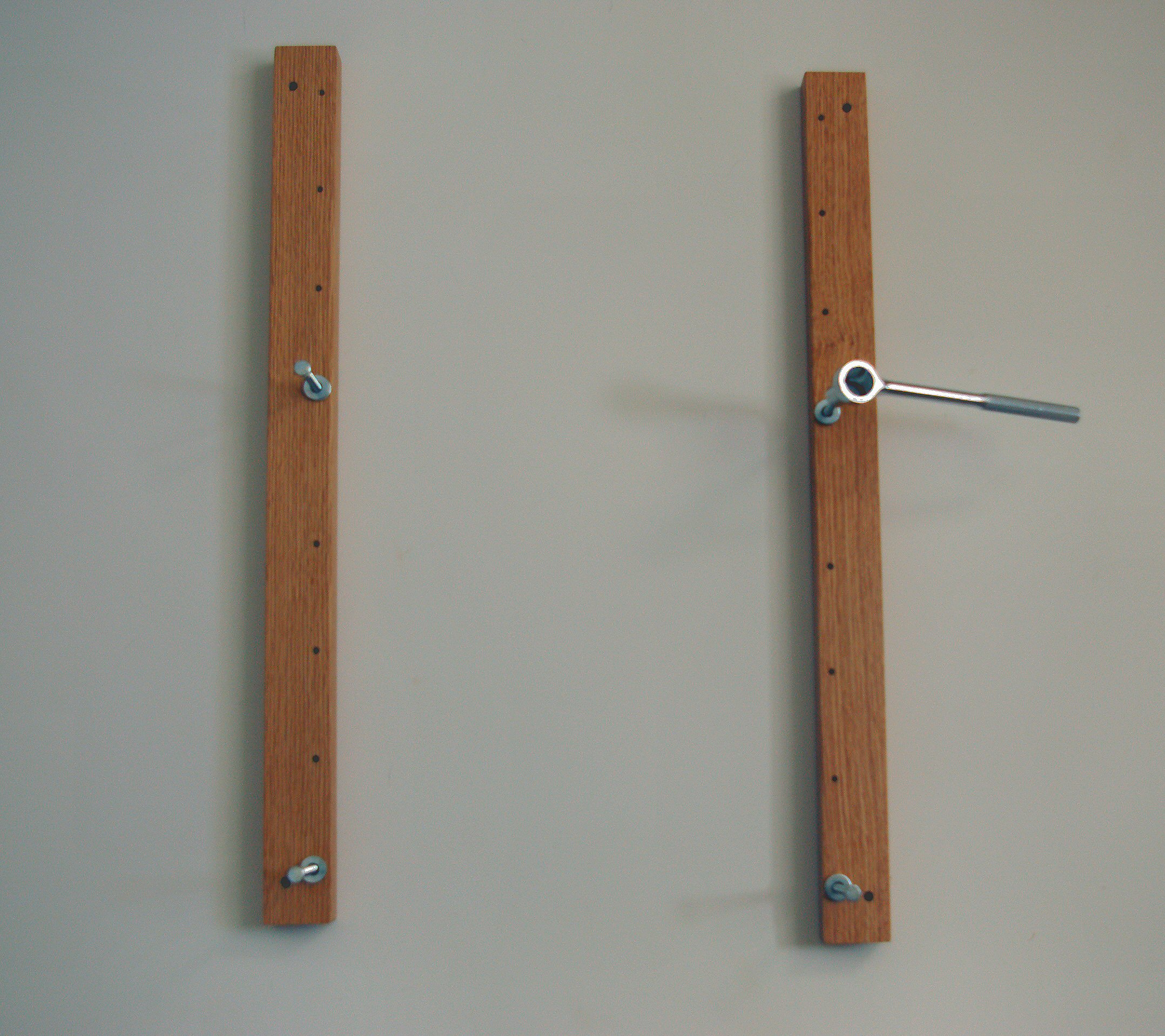

Install (4) Screws with (2) washers for each Screw into 3/16" holes as shown.

Using the 1st and 5th holes will work for most scanners.

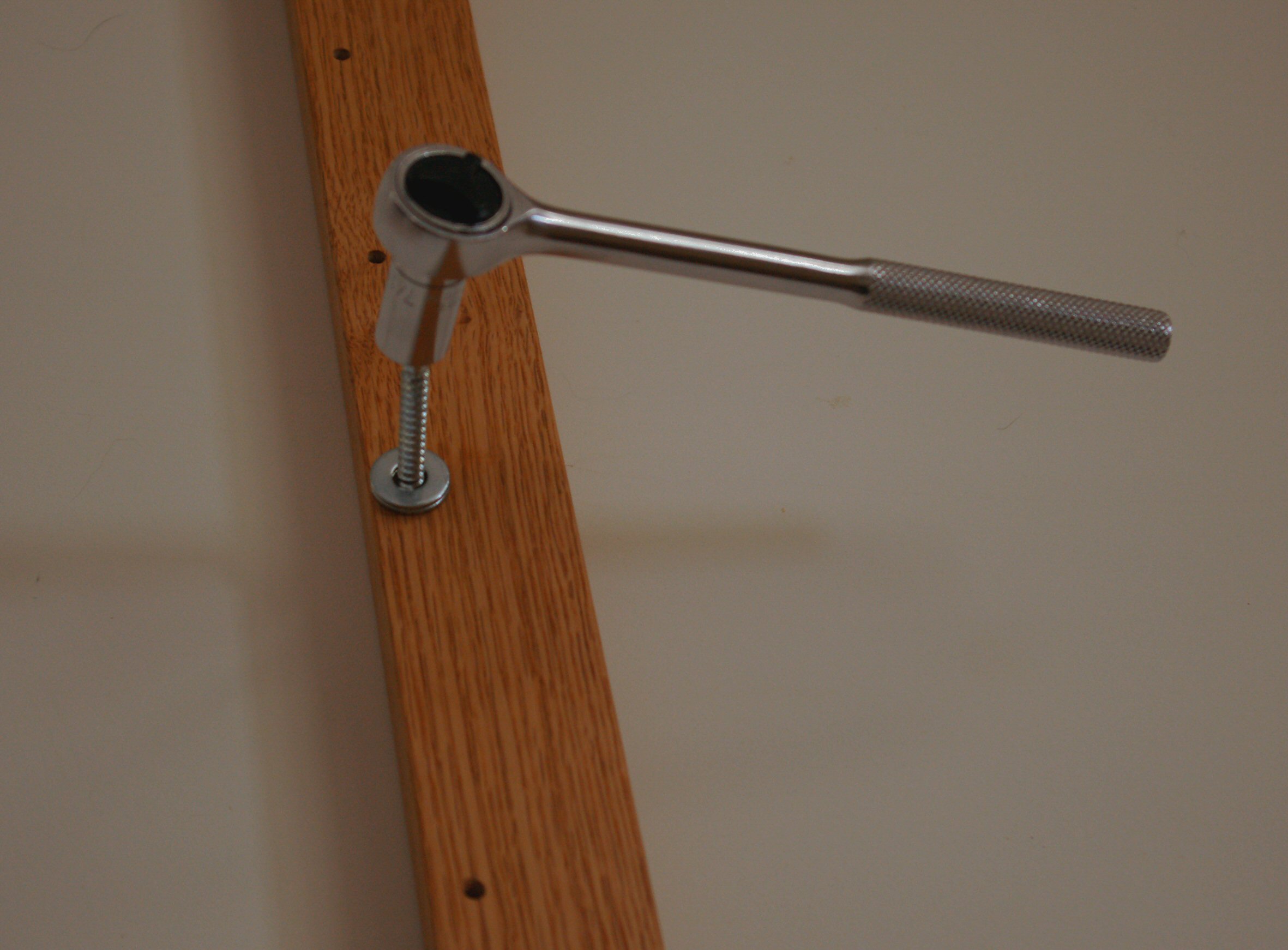

Wax Screws prior to insertion, use gauge pin to set height of Screw.

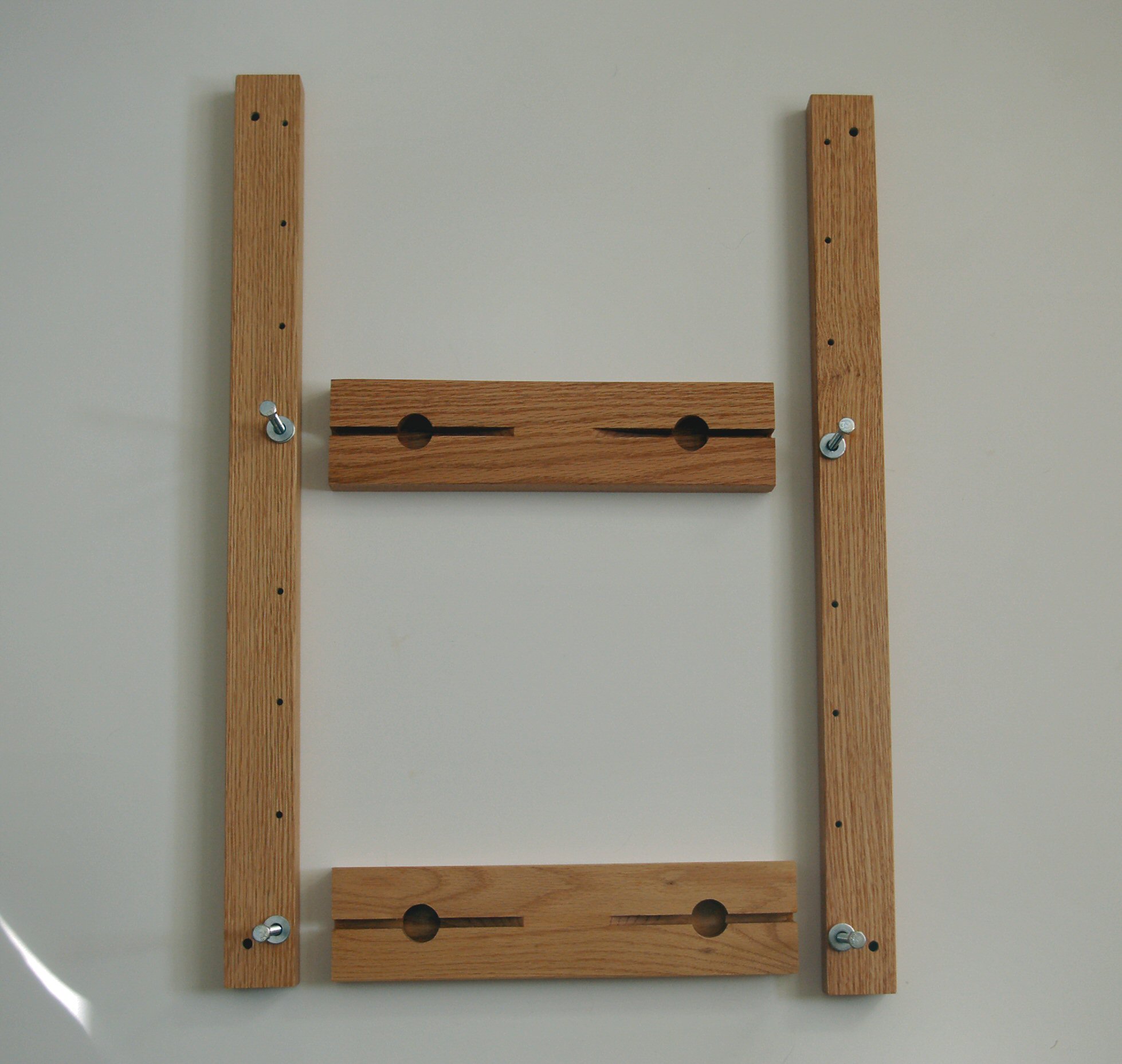

Arrange Shelf Slides and Blocks as shown

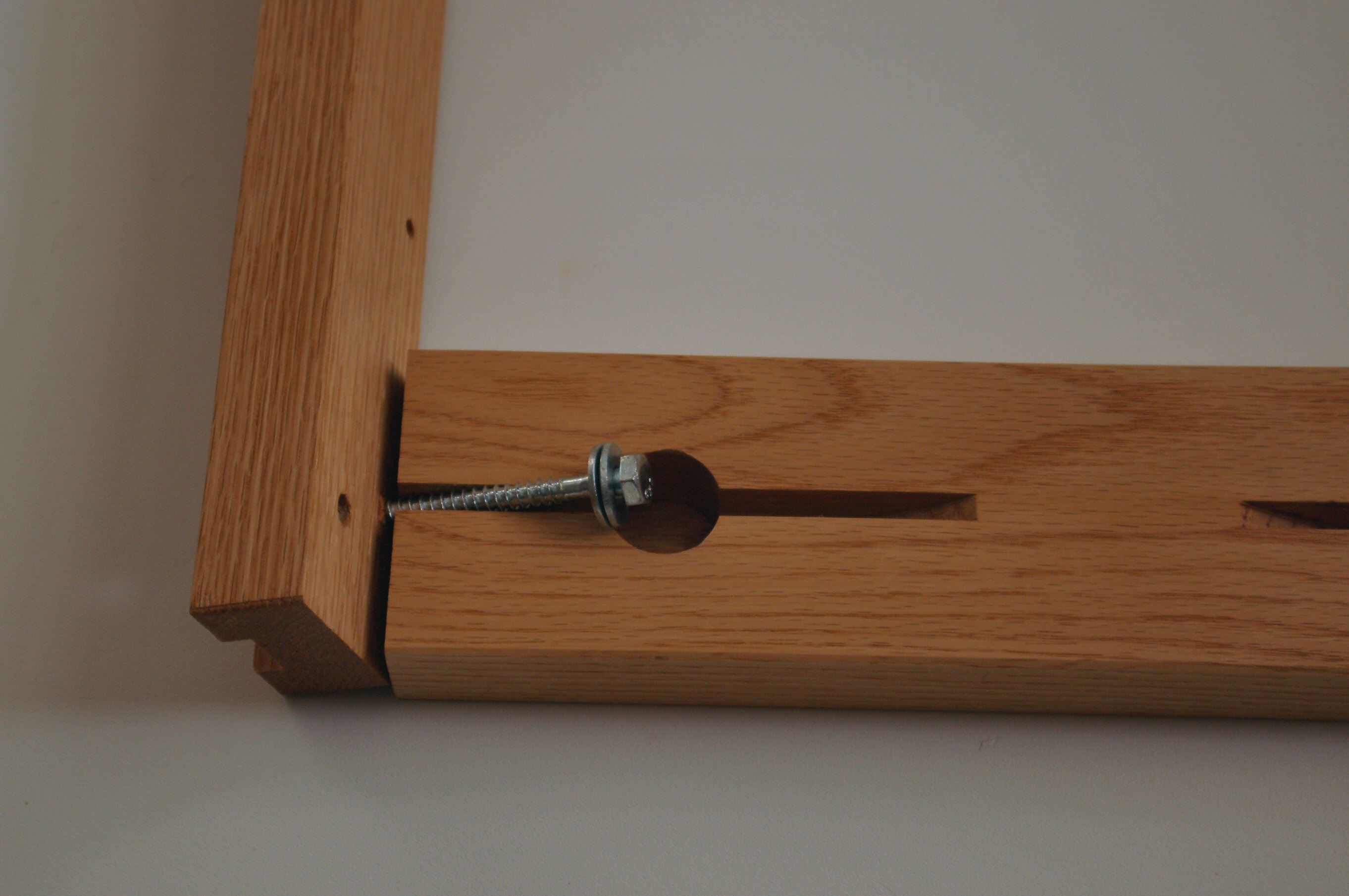

Drop Screws installed into Shelf Slides into pockets in Blocks

Make sure washers are under the heads of the Screws and not between the wood parts

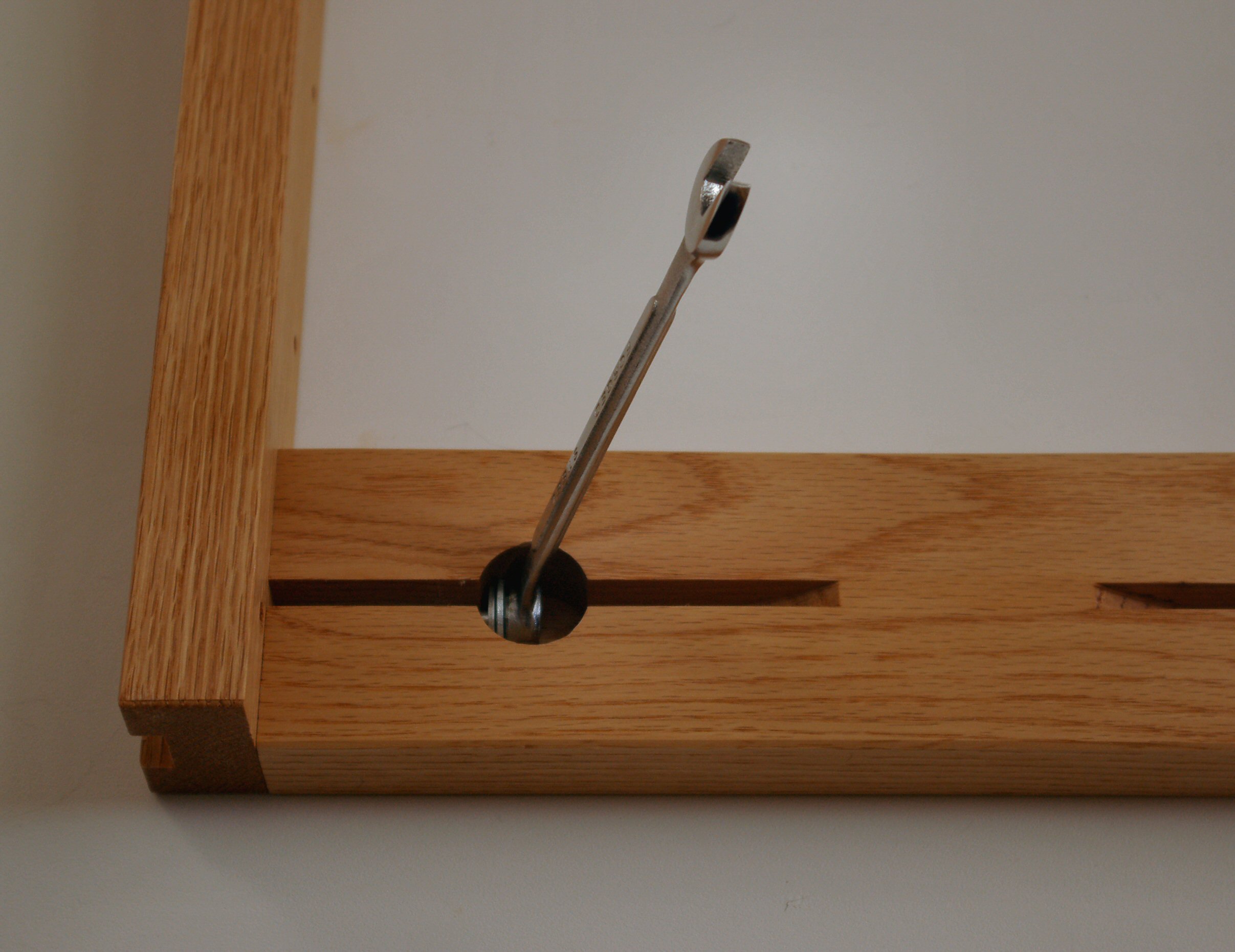

Tighten screws

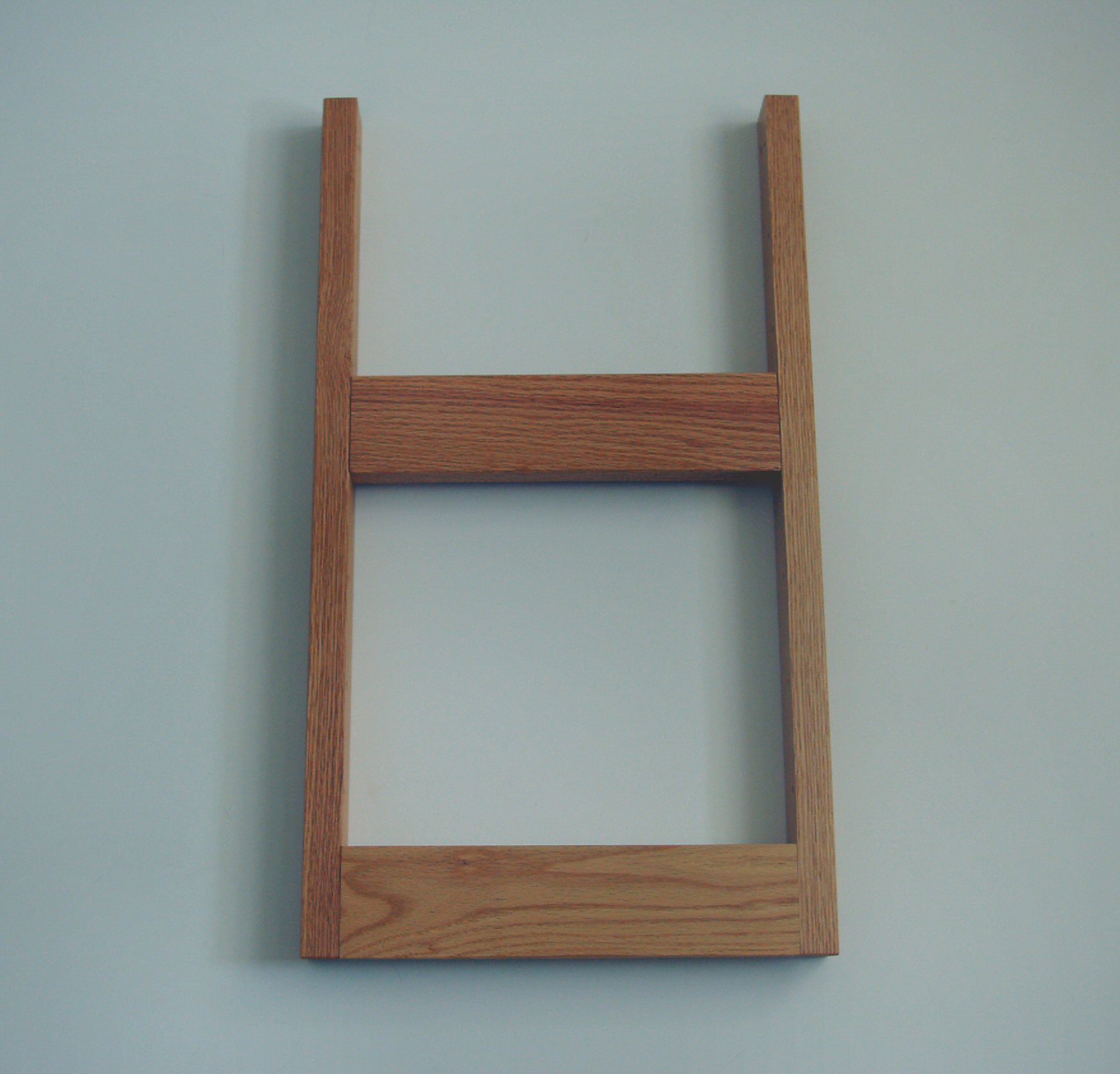

Finished Scanner Shelf looks like this.

Install Desk Slides onto top surface of your desk's Frame Rails.

Slide Scanner Shelf in

Use Velcro to attach your scanner to the Scanner Shelf:  Velcro
