Storage Tray Assembly

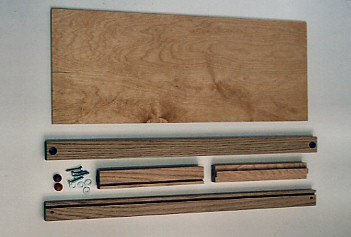

Locate Storage Tray Parts:

(1) Drawer Bottom: 1/4" plywood

(2) Rail: 13/16" X 1 3/8"

(2) Blocks: 1 9/16" X 1 3/8"

(4) screws 1/4" X 1 1/2"

(2) 3/4" wood plugs

(4) washers 1/4" Flat

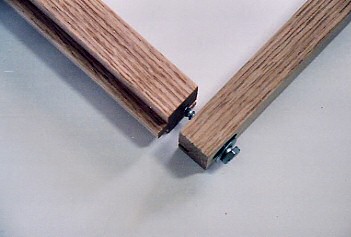

Attach one of the Rails to (2) Blocks using 1 1/2" screws& washers.

Washer goes under head of screw, not between wood parts.

Make sure grooves in Rails and Blocks line up, and you wax screws prior to insertion.

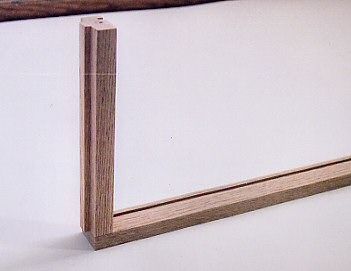

Stand Rail & Block assembly up. It should have the shape of the letter U.

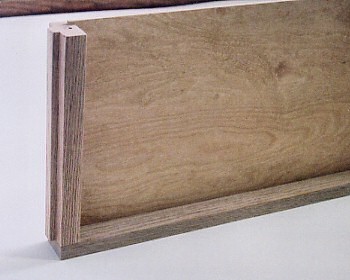

Slide Tray Bottom into grooves in Blocks and Rail












Install remaining Rail with screws and washers.

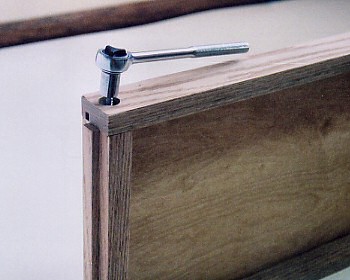

Tighten Screws

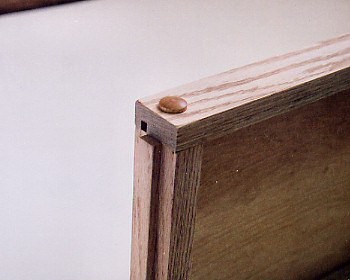

Install (2) wood plugs into holes in one of the Tray Rails. This will be the front of the Tray

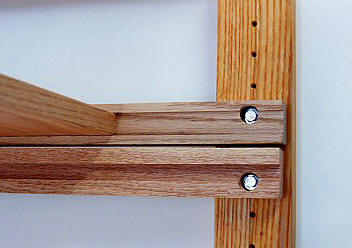

Install (2) Storage Tray Slides just underneath the Monitor Shelf as shown.

Use 1/4 X 1 1/2" screws with (1) washer under their heads.
